Hierarchical clustering is another simple but powerful clustering algorithm. The idea is to build a similarity tree based on pairwise distances. The algorithm starts with grouping the two closest objects (based on the distance between feature vectors) and creates an "average" node in a tree with the two objects as children. Then the next closest pair is found among the remaining objets but also including any average nodes, and so on. At each node the distance between the two children is also stored. Clusters can then be extracted by traversing this tree and stopping nodes with distance smaller some threshold.

Hierarchical clustering has several benefits. For example the tree structure can be used to visualize relationships and how clusters are related. A good feature vector will give a nice separation in the tree. Another benefit is that the tree can be used with different cluster thresholds without recomputing the tree. The drawback, however, is that one needs to choose a threshold if the actual clusters are needed.

Let's see what this looks like in code. Create a file hcluster.py and add the following code (partially taken and modified from the example in "Programming Collective Intelligence" by Toby Segaran (O'Reilly Media 2007, page 33).

from numpy import *

class cluster_node:

def __init__(self,vec,left=None,right=None,distance=0.0,id=None,count=1):

self.left=left

self.right=right

self.vec=vec

self.id=id

self.distance=distance

self.count=count #only used for weighted average

def L2dist(v1,v2):

return sqrt(sum((v1-v2)**2))

def hcluster(features,distance=L2dist):

#cluster the rows of the "features" matrix

distances={}

currentclustid=-1

# clusters are initially just the individual rows

clust=[cluster_node(array(features[i]),id=i) for i in range(len(features))]

while len(clust)>1:

lowestpair=(0,1)

closest=distance(clust[0].vec,clust[1].vec)

# loop through every pair looking for the smallest distance

for i in range(len(clust)):

for j in range(i+1,len(clust)):

# distances is the cache of distance calculations

if (clust[i].id,clust[j].id) not in distances:

distances[(clust[i].id,clust[j].id)]=distance(clust[i].vec,clust[j].vec)

d=distances[(clust[i].id,clust[j].id)]

if d < closest:

closest=d

lowestpair=(i,j)

# calculate the average of the two clusters

mergevec=[(clust[lowestpair[0]].vec[i]+clust[lowestpair[1]].vec[i])/2.0 \

for i in range(len(clust[0].vec))]

# create the new cluster

newcluster=cluster_node(array(mergevec),left=clust[lowestpair[0]],

right=clust[lowestpair[1]],

distance=closest,id=currentclustid)

# cluster ids that weren't in the original set are negative

currentclustid-=1

del clust[lowestpair[1]]

del clust[lowestpair[0]]

clust.append(newcluster)

return clust[0]

Running hcluster() on a matrix with feature vectors as rows will create and return the cluster tree. The choice of distance measure depends on the actual feature vectors, here we used the Euclidean distance but you can create any function and use that as parameter.

To extract the clusters from the tree you need to traverse the tree from the top until a node with distance value smaller than some threshold is found. This is easiest done recursively.

def extract_clusters(clust,dist):

# extract list of sub-tree clusters from hcluster tree with distance < dist

clusters = {}

if clust.distance < dist:

# we have found a cluster subtree

return [clust]

else:

# check the right and left branches

cl = []

cr = []

if clust.left!=None:

cl = extract_clusters(clust.left,dist=dist)

if clust.right!=None:

cr = extract_clusters(clust.right,dist=dist)

return cl+cr

This function will return a list of sub-trees containing the clusters. To get the leaf nodes that contain the object ids, traverse each sub-tree and return a list of leaves using:

def get_cluster_elements(clust):

# return ids for elements in a cluster sub-tree

if clust.id>0:

# positive id means that this is a leaf

return [clust.id]

else:

# check the right and left branches

cl = []

cr = []

if clust.left!=None:

cl = get_cluster_elements(clust.left)

if clust.right!=None:

cr = get_cluster_elements(clust.right)

return cl+cr

Let's try this on a simple example to see it all in action. The file sunsets.zip contains 100 images downloaded from Flickr using the tag "sunset" or "sunsets". For this example we will use the average color of each image as feature vector. This is crude and simple but good enough for illustrating what hierarchical clustering does. Try running the following code in a folder containing the sunset images.

import os

from PIL import Image

from numpy import *

import hcluster

#create a list of images

imlist = []

for filename in os.listdir('./'):

if os.path.splitext(filename)[1] == '.jpg':

imlist.append(filename)

n = len(imlist)

#extract feature vector for each image

features = zeros((n,3))

for i in range(n):

im = array(Image.open(imlist[i]))

R = mean(im[:,:,0].flatten())

G = mean(im[:,:,1].flatten())

B = mean(im[:,:,2].flatten())

features[i] = array([R,G,B])

tree = hcluster.hcluster(features)

To visualize the cluster tree, one can draw a dendrogram. This often gives useful information on how good a given descriptor vector is and what is considered similar in a particular case. Add the following code (also adapted from Segaran's book).

from PIL import Image,ImageDraw

def drawdendrogram(clust,imlist,jpeg='clusters.jpg'):

# height and width

h=getheight(clust)*20

w=1200

depth=getdepth(clust)

# width is fixed, so scale distances accordingly

scaling=float(w-150)/depth

# Create a new image with a white background

img=Image.new('RGB',(w,h),(255,255,255))

draw=ImageDraw.Draw(img)

draw.line((0,h/2,10,h/2),fill=(255,0,0))

# Draw the first node

drawnode(draw,clust,10,(h/2),scaling,imlist,img)

img.save(jpeg)

def drawnode(draw,clust,x,y,scaling,imlist,img):

if clust.id<0:

h1=getheight(clust.left)*20

h2=getheight(clust.right)*20

top=y-(h1+h2)/2

bottom=y+(h1+h2)/2

# Line length

ll=clust.distance*scaling

# Vertical line from this cluster to children

draw.line((x,top+h1/2,x,bottom-h2/2),fill=(255,0,0))

# Horizontal line to left item

draw.line((x,top+h1/2,x+ll,top+h1/2),fill=(255,0,0))

# Horizontal line to right item

draw.line((x,bottom-h2/2,x+ll,bottom-h2/2),fill=(255,0,0))

# Call the function to draw the left and right nodes

drawnode(draw,clust.left,x+ll,top+h1/2,scaling,imlist,img)

drawnode(draw,clust.right,x+ll,bottom-h2/2,scaling,imlist,img)

else:

# If this is an endpoint, draw a thumbnail image

nodeim = Image.open(imlist[clust.id])

nodeim.thumbnail((20,20))

ns = nodeim.size

img.paste(nodeim,(x,y-ns[1]//2,x+ns[0],y+ns[1]-ns[1]//2))

The dendrogram is then drawn like this.

hcluster.drawdendrogram(tree,imlist,jpeg='sunset.jpg')

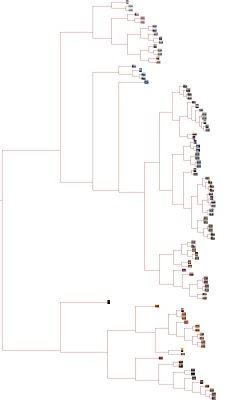

This should give an image like the one below.

Hope this was useful. I have one final small thing about clustering I want to write, something for next week maybe.
